Condensers Friedrichs Manufacturer,Supplier and Exporter
Product Code : SEL-LG-11469

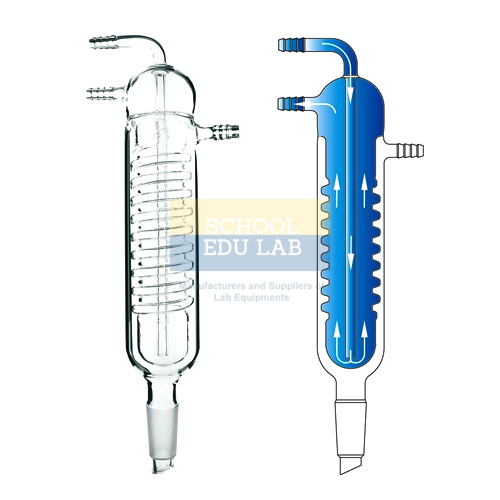

Quick Answer: A Friedrichs condenser in borosilicate glass whose specially formed spiral inner tube gives a long vapour path for good heat transfer and anti-flooding characteristics, with a standard taper outer joint set at 15° to the condenser.
Last updated: October 2026
Key Features
- Specially formed spiral inner tube giving a long vapour path
- Good heat transfer and anti-flooding characteristics
- Standard taper outer joint at a 15° angle to the condenser, and a lower inner drip tip joint
- Hose connections with an O.D. of 10 mm at the middle serration
- Interchangeable inner and outer joints
- Borosilicate glass, heat resistant and chemical resistant
Technical Specifications
| Specification | Value |
|---|---|
| Inner tube | Specially formed spiral, long vapour path |
| Outer joint | Standard taper, at 15° to the condenser |
| Lower joint | Inner, with drip tip |
| Hose connections | O.D. 10 mm at the middle serration |
| Joints | Interchangeable inner and outer |
| Material | Borosilicate glass |
About This Product
Instead of a straight inner tube, the Friedrichs condenser uses a specially formed spiral, which makes the path that vapour travels through it long. That long path gives good heat transfer and anti-flooding characteristics. The outer joint is a standard taper set at 15° to the condenser, the lower inner joint ends in a drip tip, and the borosilicate glass resists heat and chemicals.
Frequently Asked Questions
What size are the hose connections on the Friedrichs condenser?
The hose connections have an O.D. of 10 mm at the middle serration.
How are the joints arranged?
There is a standard taper outer joint at a 15° angle to the condenser and a lower inner drip tip joint; the inner and outer joints are interchangeable.
Related: Laboratory Glassware, Condenser Dimroth, Double Surface Condensers, Condenser Leibig.
For a quotation on the Condensers Friedrichs, contact School Educational Instrument.
