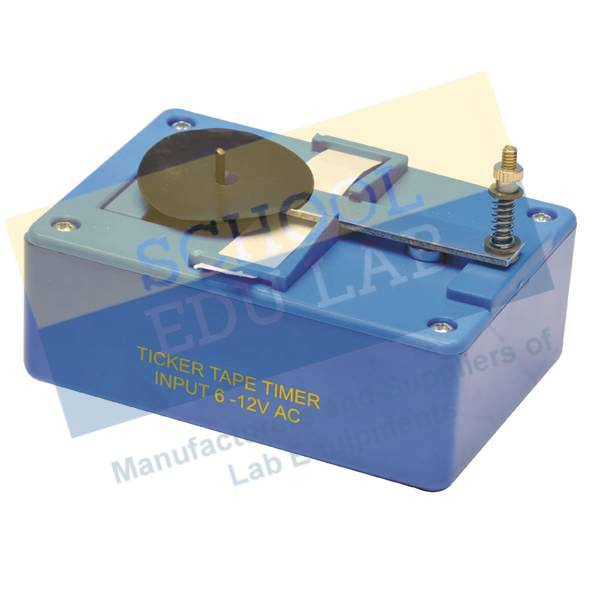

Ticker Tape Timer Manufacturer,Supplier and Exporter
Product Code : SEL-PLE-10150
Quick Answer: Timing motion in one dimension, the Ticker Tape Timer strikes 50 dots per second on a moving paper strip, so the spacing of the dots shows how far an object travelled in each equal interval of time.
Last updated: October 2026
Key Features
Striking rate: 50 dots per second
Electromagnet with spring-loaded armature, operated on 12V AC
Screw-shaped hammer on the armature marks the paper through a carbon paper disc
Adjustable amplitude of vibration
Paper tape holder included
Complete assembly mounted in a metal base
Technical Specifications
Specification
Value
Striking rate
50 dots per second
Operating supply
12V AC
Mechanism
Electromagnet with spring-loaded armature
Marking
Screw-shaped hammer, carbon paper disc
Base
Metal
Adjustment
Amplitude of vibration
About This Product
Because the dots are struck at equal intervals of time, the spacing along the paper strip gives a record of how an object moved in one dimension, which students can measure after the run. The amplitude of vibration is adjustable, the paper tape holder is built in, and the whole assembly sits on a metal base, for kinematics practicals in school and college labs.
Frequently Asked Questions
How many dots does it print each second?
The striking rate is 50 dots per second, so each gap between dots represents an equal time interval.
What supply does it need?
The electromagnet and spring-loaded armature operate on 12V AC.
