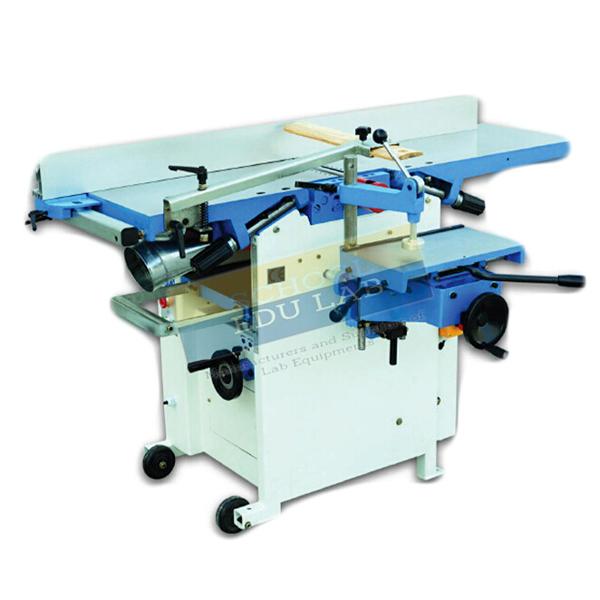

Combination Surface Planer and Thicknesser Manufacturer,Supplier and Exporter
Product Code : SEL-WWPT-11560
Quick Answer: Combining surface planing and thicknessing in one machine, this unit planes up to 408 mm wide, thicknesses stock from 3 to 225 mm and runs a 3-knife, 70 mm cutter block at 5500 rpm on a 4 kW/3 hp motor.
Last updated: October 2026
Key Features
- Max. planing width: 408 mm
- Thicknessing height: 3-225 mm
- Max. chip removal: 3 mm (planer), 4.5 mm (thicknesser)
- Cutter block: 70 mm diameter, 3 knives, 5500 rpm
- Feed speed 7 m/min with rubber out-feed roller, 32 mm diameter
- Fence tilt 45-90 degree; dust outlet 120 mm
Technical Specifications
| Specification | Value |
|---|---|
| Motor | 4 kW / 3 hp |
| Max. blade size | 254 mm |
| Max. planing width | 408 mm |
| Thicknessing height | 3-225 mm |
| Max. chip removal, thicknesser | 4.5 mm |
| Max. chip removal, planer | 3 mm |
| Feed speed | 7 m/min |
| Rubber out-feed roller diameter | 32 mm |
| Thicknessing table size | 600 x 408 mm |
| Planer table size | 1660 x 410 mm |
| Dust outlet | 120 mm |
| Cutter block | 70 mm diameter, 5500 rpm, 3 knives |
| Fence tilt | 45-90 degree |
| Machine dimensions | 1660 x 870 x 1000 mm |
| Packing size | 1670 x 690 x 980 mm |
About This Product
Surface planing flattens one face and edge of a board, and thicknessing then brings the board to an even thickness with the opposite face parallel. Both operations share one machine here: the 1660 x 410 mm planer table carries the board for face and edge work, and the thicknesser feeds stock at 7 m/min over a 600 x 408 mm table. School Educational Instrument can ship the Combination Surface Planer and Thicknesser to Argentina, Lebanon, Eswatini, South Africa and Sri Lanka.
Frequently Asked Questions
What thickness range can it handle?
The thicknessing height is 3-225 mm, with a thicknessing table of 600 x 408 mm.
How much can be removed in one setting?
Maximum chip removal is 3 mm on the planer and 4.5 mm on the thicknesser.
Related: Wood Workshop Portable Tool, Jointer Planer, Spindle Moulder Machine, Universal Dust Collector.
For a quotation on the Combination Surface Planer and Thicknesser, contact School Educational Instrument.
