Air Conditioning Unit Manufacturer,Supplier and Exporter
Product Code : SEL-EELE-11131
School Educational Instrument is a leading Air Conditioning Unit Manufacturer,suppliers and Exporter

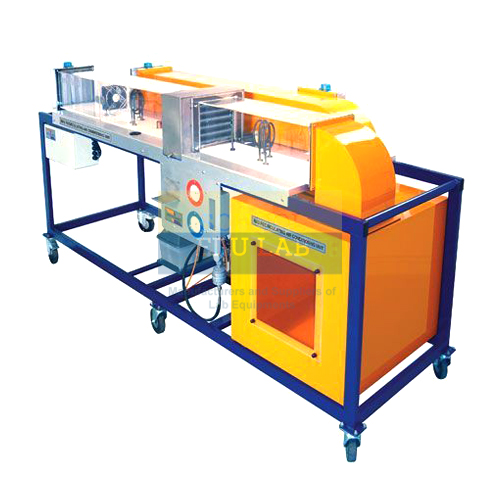

Air Conditioning Unit
The air is then passed over a nozzle from a steam boiler, which allows the air to be humidified. The next component in the duct is the evaporator of the integral refrigeration unit. As the air passes through the evaporator it is cooled down. The evaporator housing also allows any water which condenses from the air to be collected in an external vessel. Air is drawn into the duct by a variable speed fan, and is passed through a flow straightener to the preheat heating elements. After the evaporator the air passes over the reheat elements and out through a louvered exit. Temperature and RH sensors are provided at the air inlet, after the preheat and humidifier, after the evaporator and after the reheat. The air flow is measured by an electronic sensor. Underneath the duct are mounted the steam boiler for the humidifier, the compressor and condenser for the refrigeration system and the electronic control box. The mains supply voltage is monitored in the equipment to allow calculation of effective heater powers.
Specifications:-
• Computer controlled via USB interface, with complete educational software including data logging, graph plotting with real time updates, mimic diagrams, data export.
• Air Conditioning teaching system, complete with initial heating stage, humidifier, chiller/dehumidifier and final heating stage.
• Transparent duct (200mm x 200 mm) for complete visibility of the process.
• Educational software, replicating the psychrometric chart calculations.
• Electronic Flowmeter to measure the air flow in the duct.
• Dual control of boiler setting with a fast heat up setting and a gentle setting for control.
• 4 sets of Temperature and Relative Humidity measurements at the various stages of the process.
• RH sensors come with calibration values which can be entered into the software for best accuracy.
We are leading manufacturers, suppliers of Air Conditioning Unit for Electronics Engineering Lab Equipments. Contact us to get high quality Air Conditioning Unit for Electronics Engineering Lab Equipments for schools, colleges, universities, research labs, laboratories and various industries.
