Tilting Flume Manufacturer,Supplier and Exporter
Product Code : SEL-TM-11057
Quick Answer: For open-channel flow studies, the Tilting Flume provides a 200 x 300 mm hydraulic channel, 6000 mm long, whose bed slope can be set positive or negative by screw jack, with sliding gates to regulate depth.
Last updated: October 2026
Key Features

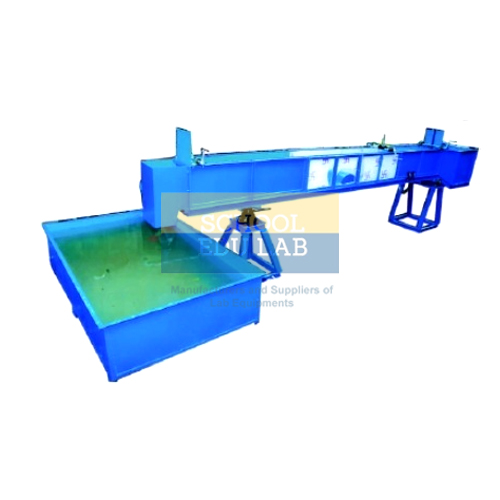

- Hydraulic flume, 200 x 300 mm cross-section and 6000 mm long
- Transparent windows of 1800 mm length on either side
- Screw jack to change the bed slope, positive or negative
- Sliding gates upstream and downstream of the test section to regulate depth of flow
- Inlet flow steadying section and supply tank with wave damping arrangement
- Trolley-mounted hook or point gauge with longitudinal and transverse movement
Technical Specifications
| Specification | Value |
|---|---|
| Flume cross-section | 200 x 300 mm |
| Flume length | 6000 mm |
| Side windows | Transparent, 1800 mm long, on either side |
| Slope adjustment | Screw jack, positive or negative slope |
| Pump | 3 H.P. centrifugal monoblock |
| Discharge measurement | Orifice meter with manometer |
| Inlet/throat dimensions | 50/25 mm |
| Depth measurement | Point gauge on trolley |
About This Product
A tilting flume is used to teach open-channel hydraulics, since slope, depth and discharge can all be set and measured on one rig. On this flume the 3 H.P. centrifugal monoblock pump supplies the channel, while the flow steadying section and wave damping arrangement reduce disturbances at the test section. Flow can be watched through the side windows and depth read from the trolley gauge, which moves along and across the channel.
Frequently Asked Questions
How is the slope of the Tilting Flume changed?
A screw jack changes the slope of the flume, and the bed can be set to positive or negative slopes.
How are depth and discharge measured?
Depth is measured with a hook or point gauge mounted on a trolley that gives longitudinal and transverse movement. Discharge is measured with an orifice meter and manometer.
Related: Thermodynamics Models, Redwood Viscometer Apparatus, Saybolt Viscometer Apparatus.
For a quotation on the Tilting Flume, contact School Educational Instrument.
