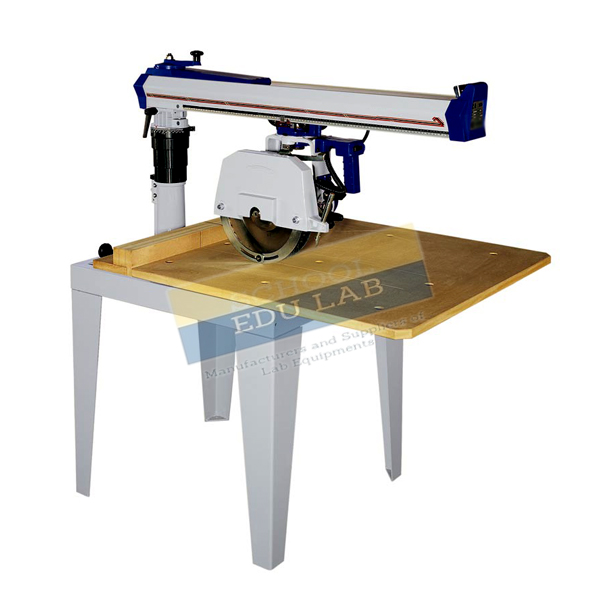

Radial Cross Cutting Machine Manufacturer,Supplier and Exporter
Product Code : SEL-WWPT-11571
Quick Answer: Driven by a 4.5 HP motor at 2900 rpm, the Radial Cross Cutting Machine takes a 12 in (305 mm) or 14 in (355 mm) blade and has a maximum cross-cutting length of 620 mm.
Last updated: October 2026
Key Features
- 4.5 HP motor running at 2900 rpm
- Takes a 12 in (305 mm) or 14 in (355 mm) blade
- Cutting head swivels and tilts
- Maximum trimming width 860 mm, maximum cross-cutting length 620 mm
- Table area 900 x 1100 mm (L x W)
- 8 bearings for the rails
Technical Specifications
| Specification | Value |
|---|---|
| Motor | 4.5 HP |
| Motor speed | 2900 rpm |
| Blade diameter | 12 in (305 mm) or 14 in (355 mm) |
| Spindle bore | 1 in (25.4 mm) |
| Bearings for rails | 8 pcs |
| Head movement | Swivelling and tilting |
| Max. trimming width | 860 mm |
| Max. cross-cutting length | 620 mm |
| Table area (L x W) | 900 x 1100 mm |
| Machine size | 1120 x 1100 x 1170 mm |
| Packing size | 1150 x 970 x 790 mm |
| Net weight | 200 kg |
About This Product
On a radial cross cutting machine the saw head is mounted above the work table and travels across the timber to cut it to length, a basic operation in carpentry and joinery training. This model pairs a 900 x 1100 mm table with a head that can be swivelled and tilted, and it handles trimming widths up to 860 mm. It weighs 200 kg net and measures 1120 x 1100 x 1170 mm.
Frequently Asked Questions
What blade sizes does the Radial Cross Cutting Machine take?
It takes a blade of 12 in (305 mm) or 14 in (355 mm) diameter on a 1 in (25.4 mm) spindle bore, driven by a 4.5 HP motor at 2900 rpm.
How large is the work table?
The table area is 900 x 1100 mm (L x W). Maximum trimming width is 860 mm and maximum cross-cutting length is 620 mm.
Related: Wood Workshop Portable Tool, Circular Saw Machine, Dimension Saw Machine, Universal Dust Collector.
For a quotation on the Radial Cross Cutting Machine, contact School Educational Instrument.
