Demonstration Meter Dial Manufacturer,Supplier and Exporter
.jpg)
Product Code : SEL-PLE-10136
Quick Answer: Large enough for a whole class to read, each demonstration meter dial is a 315 x 115 mm laminated plastic panel with a sealed moulded box holding the shunt or voltage multiplier for its scale.
Last updated: October 2026
Key Features
- Laminated plastic dial panel, 315 x 115 mm
- Sealed moulded box with the shunt or voltage multiplier matched to the scale
- Interscale design: the dial is changed to change the range
- Current dials from 5-0-5 mA up to 0-50 A
- Voltage dials from 50-0-50 mV up to 0-300 V
Technical Specifications
| Specification | Value |
|---|---|
| Panel | Laminated plastic, 315 x 115 mm |
| Range components | Shunt or voltage multiplier in sealed moulded box |
| Centre-zero current dials | 5-0-5 mA, 10-0-10 mA |
| Current dials | 0-10 mA, 0-50 mA, 0-100 mA, 0-500 mA, 0-1 A, 0-5 A, 0-10 A, 0-50 A |

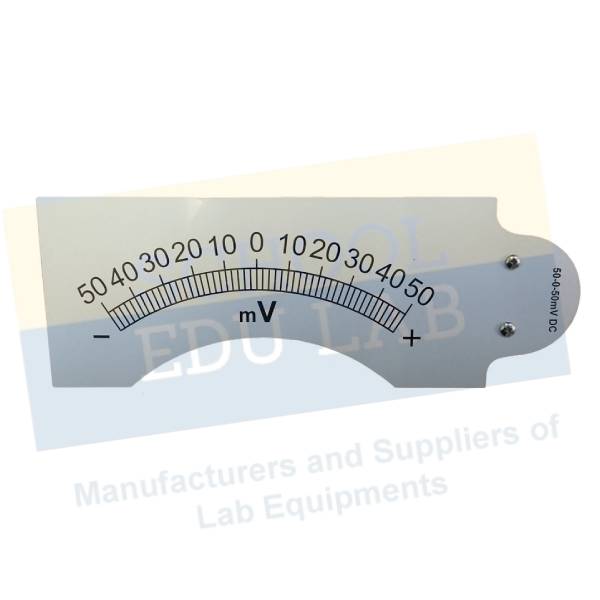

| Centre-zero voltage dials | 50-0-50 mV, 5-0-5 V |
| Voltage dials | 0-1 V, 0-5 V, 0-10 V, 0-15 V, 0-50 V, 0-300 V |
About This Product
When a teacher builds a circuit at the front of the room, a small bench meter is hard to see from the back rows. With interchangeable dials, one demonstration meter can show current or voltage in turn, each dial bringing its own shunt or voltage multiplier in a sealed moulded box, and the centre-zero dials read on either side of zero. School Educational Instrument can supply the Demonstration Meter Dial to schools and colleges in Yemen, Moldova, Costa Rica, Chad, Malawi and Japan.
Frequently Asked Questions
How is the range of the demonstration meter changed?
Each dial carries its own shunt or voltage multiplier in a sealed moulded box, so the range is changed by fitting the dial with the required scale.
Are centre-zero dials available?
Yes. Centre-zero dials are offered in 5-0-5 mA and 10-0-10 mA for current and in 50-0-50 mV and 5-0-5 V for voltage.
Related: Physics Lab Equipment, Ammeter, Single and Dual Range Voltmeter, Galvanometer.
For a quotation on the Demonstration Meter Dial, contact School Educational Instrument.
