Electric Fields Apparatus Manufacturer,Supplier and Exporter
Product Code : SEL-PLE-10241

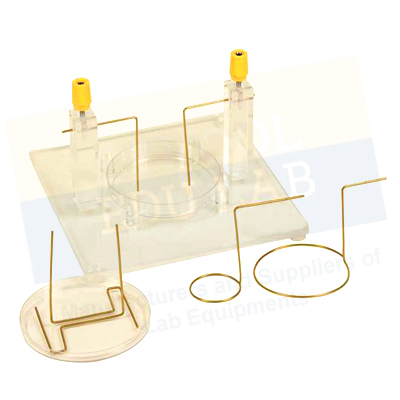

Quick Answer: Electric field patterns can be made visible with this apparatus in much the way iron filings reveal a magnetic field, either by direct viewing or on an overhead projector. It is designed for use with a 0-5 kV EHT power supply.
Last updated: October 2026
Key Features
- Shows electric field patterns by direct viewing or on an overhead projector
- Clear plastic dish, 90 mm diameter x 12 mm depth
- Base measuring 140 x 125 mm
- Thumbscrew beside each terminal for fine height adjustment of the electrodes
- For use with a 0-5 kV EHT power supply
Technical Specifications
| Specification | Value |
|---|---|
| Dish | Clear plastic, 90 mm diameter x 12 mm depth |
| Base | 140 x 125 mm |
| Electrode adjustment | Thumbscrew beside each terminal, fine height setting |
| Viewing | Direct or on an overhead projector |
| Power supply | For use with 0-5 kV EHT supply |
About This Product
Field lines around charged electrodes are hard to picture from textbook diagrams alone. Here the electrodes sit in a shallow clear dish, so the pattern can be watched at the bench or, with the unit placed on an overhead projector, shown to a whole room at once. Fine height adjustment at each terminal lets the teacher set the electrodes accurately before a demonstration. Schools and distributors in Turkmenistan, Antigua and Barbuda, Belgium, Bahrain, Guyana and Kyrgyzstan can order the Electric Fields Apparatus from School Educational Instrument.
Frequently Asked Questions
Can the field pattern be shown to a whole class?
Yes. The pattern can be viewed directly, or the apparatus, which uses a clear plastic dish, can be placed on an overhead projector.
What power supply is it used with?
It is intended for use with a 0-5 kV EHT power supply.
Related: Physics Lab Equipment, EHT Power Supply, Electric Whirl For Physics Lab, Van De Graff Generator For Physics Lab.
For a quotation on the Electric Fields Apparatus, contact School Educational Instrument.
