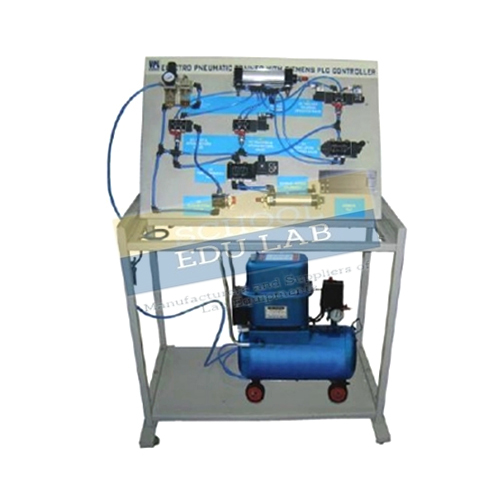

Electro Pneumatic Trainer
It demonstrates the design, construction, and applications of Electro-Pneumatic components and circuits.
The Electro Pneumatic Trainer outlines basic of pneumatic control systems along with its components and their applications.
Features:-
Enhanced Electrical Safety Considerations.
Training Manuals mimic Charts for Operation Ease.
Compact Ergonomic Design.
User-Friendly, Self Explanatory Systems.
Leak-proof Safety Measures, sturdy piping & Robust Construction.
M.S. powder coated cubical plant with standard Instrument Assemblies.
Inbuilt Safety Measures to avoid improper usage.
Relay board logic circuit operation.
Profile Plate.
Specification:-
Block Manifold:- ¼’’, 6 ways.
AND Valve- Dual Pressure Valve, ¼” connection.
Shuttle Valve:- OR Valve, ¼” connection.
Sintered Silencer:- ¼’’ connection.
Single Acting Cylinder:- Bore: 25 mm x Stroke: 100mm, Mounting: Foot
Double Acting Cylinder:- Bore: 25 mm x Stroke: - 100mm, Mounting: Foot
A.F.R. / F.R.L. Unit:- ¼’’ Connection, 0-10 Kg/cm2
Solenoid Valve:- 2 Nos, 5/2 way, ¼” , 230VAC/24 V & 3/2 way, ¼’’, 230 VAC/24 V DC
Flow Control Valv:e- ¼’’ (F), Square Body.
Non-Return Valve:- ¼’’ connection
Male Connector:- ¼’’ connection.
Indicating Lamp:- 24 VDC Operated.
Proximity Sensors:- Type: Inductive 2 wire, Diameter: 18 mm, Sensing Distance: 5 mm.
Pressure Gauge:- 0-7 Kg/cm2, connection ½’’ BSP, Dial Size: 100 mm
Pneumatic Motor- Unidirectional, Free Speed: 22,000 RPM, Air pressure: 0-90 psi,
Electrical control panel- MS Powder coated panel with switches, indicator, Test Points, controller on front fascia, UK 2.5 Terminal Connectors mounted on DIN rail channel, Use of 1sq mm multistrand wire with proper insulated Lugs, Ferruling & neat wire dressing & clamping Wires & power cables are seated through 1’’×1’’ PVC cable tray.
Dimension: 1ft (L) x 1ft (W) x 1ft (H)
Quick Push-Pull connectors:- Sufficient shall be supplied for branching of the tubing for making of the circuitry.
Plastic Tubing:- PUN 4 x 0.75, Exterior Diameter-6mm, Interior Diameter- 4mm, Transparent – 10mtr, Blue-10mtr
Relay Module- 24V DC supply, 2 NO/NC contacts, panel mounting type.
Air Compressor (Optional):- Tank capacity: 25 Liters, Discharge: 2 CFM
Motor: 2 H.P. 230 V AC Operated, Working pressure: 5-6 kg/cm2.
