Impact of Jet Apparatus Manufacturer,Supplier and Exporter
Product Code : SEL-FMM-11043

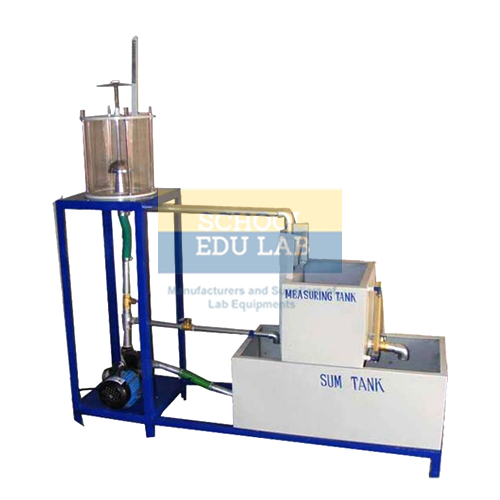

Quick Answer: In the Impact of Jet Apparatus, water circulated by a centrifugal pump leaves a nozzle and strikes a vane placed vertically above it, inside a chamber with one acrylic side so the impact can be watched.
Last updated: October 2026
Key Features
- Chamber with one acrylic side for viewing the jet striking the vanes
- Sump tank with centrifugal pump to circulate water
- Nozzle directing the jet vertically onto the vane above it
- Flat, curved and angle plates in mild steel with chrome plating
- Loading hanger with weights of 25, 50, 100 and 150 g (mild steel, chrome plated)
- Flow control valve to change jet pressure; measuring tank and stop watch for flow measurement
Technical Specifications
| Specification | Value |
|---|---|
| Plates | Flat, curved and angle plates; mild steel with chrome plating |
| Weights | 25 g, 50 g, 100 g, 150 g; mild steel with chrome plating |
| Jet control | Flow control valve to change jet pressure |
| Flow measurement | Measuring tank with transparent piezometer tube and scale, stop watch |
| Measuring tank | 400 x 400 x 260 mm |
| Sump tank | 700 x 400 x 450 mm |
About This Product
A plate placed in the path of a liquid jet experiences a force, which can be calculated from the impulse-momentum equation based on Newton's second law of motion. On this unit the vane plate moves under the jet and under the weight placed on the hanger, so students can set what they calculate beside what they see. Flat, curved and angle plates are provided, allowing the test to be repeated on different vane shapes.
Frequently Asked Questions
Which plates come with the Impact of Jet Apparatus?
A flat plate, a curved plate and angle plates, all made of mild steel with chrome plating.
How is the force of the jet worked out?
The force on a plate in the path of the jet can be calculated from the impulse-momentum equation, which is based on Newton's Second Law of Motion. Flow for the calculation is measured with the measuring tank and stop watch.
Related: Fluid Mechanics Models, Flow Over Notches Apparatus, Pressure Measurment Apparatus, Orifice And Mouthpiece Apparatus.
For a quotation on the Impact of Jet Apparatus, contact School Educational Instrument.
