Orificemeter Apparatus Manufacturer,Supplier and Exporter
Product Code : SEL-FMM-11048
Quick Answer: The Orificemeter Apparatus lets students calibrate a 13 mm orifice meter, plot its characteristics and find its coefficient of discharge at different rates of flow, reading the pressure difference on a 250-0-250 mm acrylic differential manometer.
Last updated: October 2026

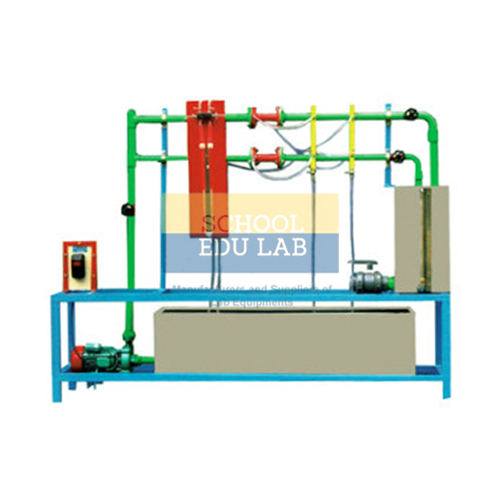

Key Features
- Orifice meter, 13 mm, mild steel with painting
- Block-type acrylic differential manometer, 250-0-250 mm
- Flow control valve to change discharge
- Measuring tank with transparent piezometer tube and scale
- Sump tank, 900 x 350 x 350 mm
Technical Specifications
| Specification | Value |
|---|---|
| Orifice meter | 13 mm, mild steel with painting |
| Manometer | Block type acrylic differential, 250-0-250 mm |
| Measuring tank | 295 x 345 x 345 mm |
| Sump tank | 900 x 350 x 350 mm |
About This Product
An orifice meter is an obstruction flow meter: it works out flow from the pressure drop across a restriction in the pipe. Calibrating one against the measuring tank gives students an appreciation of how such meters work and of the theory behind them, and repeating the test at several flow rates yields the characteristic curve and the coefficient of discharge.
Frequently Asked Questions
What is calibrated on the Orificemeter Apparatus?
The given obstruction flow meter, a 13 mm orifice meter in painted mild steel. Students plot its characteristics and find its coefficient of discharge for different rates of flow.
How is the discharge measured?
Discharge is changed with the flow control valve and collected in the 295 x 345 x 345 mm measuring tank, which is read on a transparent piezometer tube with scale.
Related: Fluid Mechanics Models, Orifice And Mouthpiece Apparatus, Pressure Measurment Apparatus, Verification of Bernoullis Theorem.
For a quotation on the Orificemeter Apparatus, contact School Educational Instrument.
