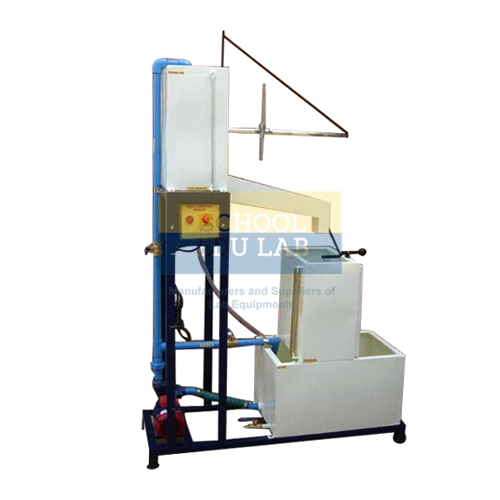

Orifice And Mouthpiece Apparatus Manufacturer,Supplier and Exporter
Product Code : SEL-FMM-11047
Quick Answer: With 16 and 12 mm orifices and 18 and 14 mm brass mouthpieces, the Orifice And Mouthpiece Apparatus is used to measure the coefficients of discharge, contraction and velocity at variable heads.
Last updated: October 2026
Key Features
- Orifices of 16 mm and 12 mm, mild steel with chrome plating
- Mouthpieces of 18 mm and 14 mm, brass
- Chrome-plated overflow pipe to change the head
- Sliding pointer with scale for X and Y axis measurement
- Flow control valve to change discharge
- Transparent piezometer tubes with scale for head and measuring tank readings
Technical Specifications
| Specification | Value |
|---|---|
| Orifices | 16 mm and 12 mm, mild steel with chrome plating |
| Mouthpieces | 18 mm and 14 mm, brass |
| Head adjustment | Chrome-plated overflow pipe |
| X and Y measurement | Sliding pointer with scale |
| Measuring tank | 295 x 345 x 345 mm |
| Sump tank | 900 x 350 x 350 mm |
About This Product
The three hydraulic coefficients describe how real flow through a small opening differs from the ideal case. Students set a head with the overflow pipe, adjust the discharge and take X and Y readings with the sliding pointer, then repeat the run for each orifice and mouthpiece. Comparing the results shows how the coefficients vary under different operating conditions, and that is the aim of the experiment. The Orifice And Mouthpiece Apparatus can be packed for export to Cameroon, Palestine, Samoa, the Central African Republic, Vanuatu and New Zealand.
Frequently Asked Questions
Which hydraulic coefficients can be found?
The coefficient of discharge, the coefficient of contraction and the coefficient of velocity, studied at variable heads for each of the given orifices and mouthpieces.
How is the head changed?
A chrome-plated overflow pipe changes the head, and the flow control valve changes the discharge. Head is read on transparent piezometer tubes with scale.
