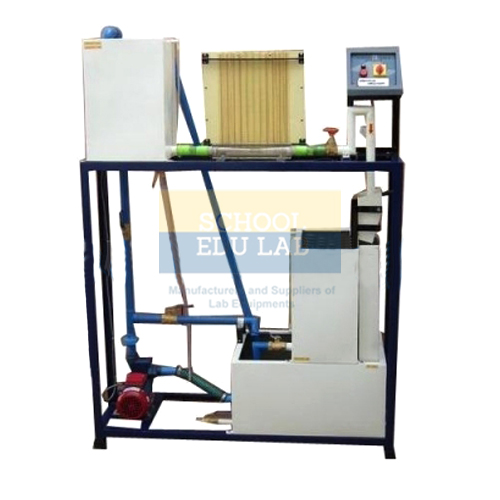

Verification of Bernoullis Theorem Manufacturer,Supplier and Exporter
Product Code : SEL-FMM-11041
Quick Answer: For verifying Bernoulli's theorem in fluid mechanics practicals, this unit passes water through a rectangular transparent acrylic channel, 0.05 m wide and 0.7 m long, with manometric tubes at sockets along it to measure changes of head.
Last updated: October 2026
Key Features
- Rectangular transparent acrylic flow section
- Manometric tubes connected at sockets along the length of the channel
- Independent measurement of pressure head
- Steady flow and variable flow rate arrangements
- Flow control valve and stop clock
- Self-sufficient unit with its own measuring tank and sump tank
Technical Specifications
| Specification | Value |
|---|---|
| Flow channel | Transparent acrylic, rectangular section |
| Channel width | 0.05 m |
| Channel length | 0.7 m |
| Head measurement | Transparent acrylic tubes and scales fixed over the flow channel |
| Measuring tank | 295 x 345 x 345 mm |
| Sump tank | 900 x 350 x 350 mm |
| Timing | Stop clock |
About This Product
As the cross-sectional area of the channel changes, the velocity of the water changes with it, and the manometric tubes record the head at each section. Students then calculate the energy and head of water at the different sections to verify Bernoulli's theorem. Because the flow rate can be varied and steady flow maintained, readings can be repeated at several settings on this piece of mechanical engineering lab equipment. School Educational Instrument can supply the Verification of Bernoullis Theorem to schools and colleges in Uruguay, Libya, Mongolia, Djibouti, Mauritania and Vietnam.
Frequently Asked Questions
How is the head measured along the channel?
Manometric tubes are connected at sockets along the length of the channel, and transparent acrylic tubes with scales fixed over the flow channel show the head at each point, giving independent measurement of pressure head.
What are the tank sizes?
The measuring tank is 295 x 345 x 345 mm and the sump tank is 900 x 350 x 350 mm. A stop clock is also part of the set-up.
Related: Fluid Mechanics Models, Orificemeter Apparatus, Pressure Measurment Apparatus, Losses In Pipe Friction Apparatus.
For a quotation on the Verification of Bernoullis Theorem, contact School Educational Instrument.
