Product Code : SEL-MACL-11070

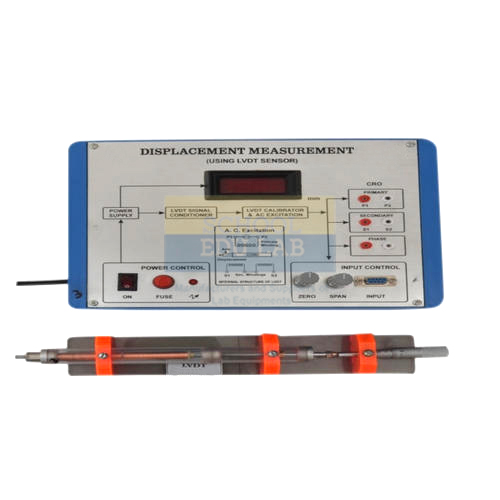

Quick Answer: The Displacement Measurement (LVDT) set-up demonstrates how an LVDT measures linear displacement, with a manual micrometer-driven mechanism to vary the displacement and a 3 1/2 digit indicator reading 0 to 20 mm.
Last updated: October 2026
Key Features
- LVDT sensor with signal conditioning circuit
- Manual micrometer-driven mechanism for varying the displacement
- Micrometer comparison scale for reference readings
- Digital indicator, 3 1/2 digit, range 0 to 20 mm
- Least count 0.1 mm
- Powder coated enclosure
Technical Specifications
| Specification | Value |
|---|---|
| Sensor | LVDT with signal conditioning circuit |
| Displacement drive | Manual micrometer-driven mechanism |
| Reference | Micrometer comparison scale |
| Indicator | Digital, 3 1/2 digit |
| Range | 0 to 20 mm |
| Least count | 0.1 mm |
About This Product
The micrometer that sets the displacement also serves as the reference, so students can compare the LVDT reading with the actual displacement at every step and see how closely the sensor follows it. As a simple demonstration set-up, it suits instrumentation practicals on displacement sensors in a measurement and control lab. Schools and distributors in Costa Rica, Venezuela, Bulgaria, Lebanon, Madagascar and Sudan can order the Displacement Measurement (LVDT) from School Educational Instrument.
Frequently Asked Questions
How is the LVDT reading checked?
The same micrometer used to vary the displacement serves as the reference, so the digital indicator reading (least count 0.1 mm, range 0 to 20 mm) can be compared with the micrometer comparison scale.
Related: Measurement and Control Lab, Level Measurement (Capacitive Principle), Calibration of Load Cells, Temperature Measurement and Control (RTD).
For a quotation on the Displacement Measurement (LVDT), contact School Educational Instrument.
