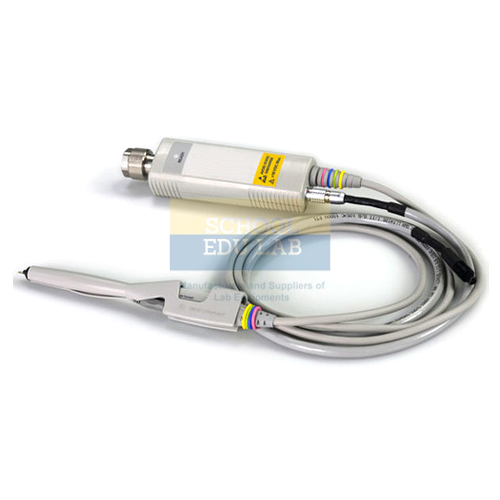

Differential Active Probe Manufacturer,Supplier and Exporter
Product Code : SEL-TILE-10961
Quick Answer: With a 6 GHz bandwidth and a switchable 2:1 or 10:1 attenuation ratio, this differential active probe is built for measuring fast differential signals in electronics and testing labs.
Last updated: October 2026
Key Features
- Bandwidth 6 GHz
- Switchable attenuation ratio, 2:1 or 10:1
- Differential input resistance 200 kΩ; input capacitance 700 fF (with browser)
- Dynamic range ± 5 V or 10 Vpp at 10:1, ± 1 V or 2 Vpp at 2:1
- DC offset range ± 15 V
- Maximum input voltage 30 V DC + peak AC
Technical Specifications
| Specification | Value |
|---|---|
| Bandwidth | 6 GHz |
| Attenuation ratio | 2:1 or 10:1 (switchable) |
| Differential input R | 200 kΩ |
| Single-ended input R | 100 kΩ |
| Common mode input R | 50 kΩ |
| Input C | 700 fF (with browser) |
| Dynamic range | ± 5 V or 10 Vpp (at 10:1); ± 1 V or 2 Vpp (at 2:1) |
| DC offset range | ± 15 V |
| Maximum input voltage | 30 V DC + peak AC |
About This Product
A differential probe measures the voltage between two points rather than against ground. This active probe has an input capacitance of 700 fF (with browser) and input resistances of 200 kΩ differential, 100 kΩ single-ended and 50 kΩ common mode. Switching between the 2:1 and 10:1 ratios changes the dynamic range: the 10:1 setting accepts up to 10 Vpp, while 2:1 covers up to 2 Vpp. It suits electronics and engineering labs that work with high-frequency circuits.
Frequently Asked Questions
What is the difference between the 2:1 and 10:1 settings?
At 10:1 the dynamic range is ± 5 V or 10 Vpp; at 2:1 it is ± 1 V or 2 Vpp. The DC offset range is ± 15 V and the maximum input voltage is 30 V DC + peak AC.
Related: Testing Instrument Lab Equipment, Digitized Semiconductor Curve Tracer, Training Bench.
For a quotation on the Differential Active Probe, contact School Educational Instrument.
