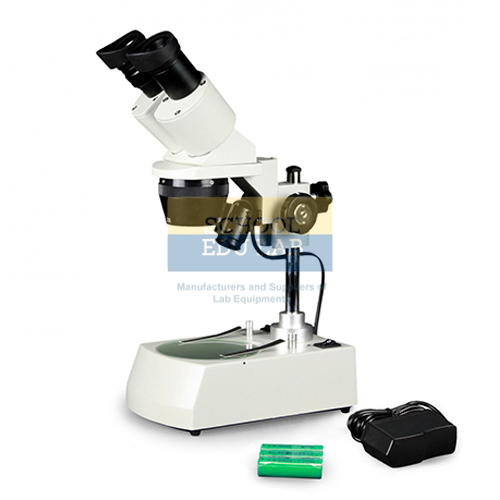

Binocular Stereo Microscope Frosted Glass Plate Manufacturer,Supplier and Exporter
Product Code : SEL-M-10914
Quick Answer: Supplied with a frosted glass plate and a reversible black and white plate, this binocular stereo microscope gives 20x, 30x, 40x and 60x from 2x and 4x objectives, with top, bottom or combined LED lighting.
Last updated: October 2026
Key Features
- 2x and 4x parfocal, parcentred objectives with 10x WF and 15x WF eyepieces
- Magnification 20x, 30x, 40x and 60x
- Dual illumination switch for top, bottom or both LED lights
- 45° inclined binocular head, interpupillary distance 51 mm to 75 mm, dioptre adjustment
- Rack and pinion focusing with a focus stop and tension adjustment
- Frosted glass plate and reversible black/white plate, both 95 mm diameter; rechargeable battery
Technical Specifications
| Specification | Value |
|---|---|
| Head | Binocular, 45° inclined |
| Eyepieces | 10x WF, 15x WF; dioptre adjustment on one tube |
| Objectives | 2x and 4x |
| Magnification | 20x, 30x, 40x, 60x |
| Working distance | 45 mm (2X/4X) |
| Interpupillary distance | 51 mm to 75 mm |
| Focusing | Rack and pinion, focus stop, tension adjustment |
| Stage plates | Frosted glass and reversible black/white, 95 mm diameter, with clips |
| Illumination | LED, top, bottom or both |
| Power | Rechargeable battery |
About This Product
The two stage plates suit different lighting: the frosted glass plate is used with light from below, while the reversible black and white plate gives a contrasting background under the top light. Four magnifications, 20x to 60x, come from the 2x and 4x objectives with 10x WF and 15x WF eyepieces, and the rechargeable battery makes the microscope cordless and easy to move for practical work in school labs.
Frequently Asked Questions
What is the frosted glass plate used for?
It is used with the bottom LED light. A reversible black and white plate with a pair of stage clips, also 95 mm in diameter, gives a contrasting background.
Which magnifications are available?
Using 2x and 4x objectives with 10x WF and 15x WF eyepieces, it gives 20x, 30x, 40x and 60x, with a 45 mm working distance.
Related: Microscopes, Cordless LED Binocular Stereo Microscope, Dual Power Binocular Stereo Microscope, Tri Power LED Stereo Microscope.
For a quotation on the Binocular Stereo Microscope Frosted Glass Plate, contact School Educational Instrument.
