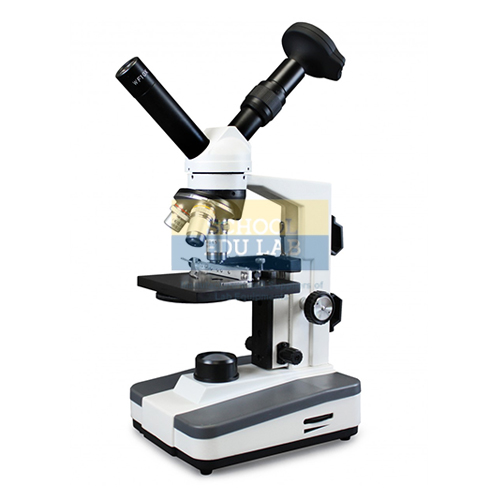

LED Cordless Dual View Microscope Manufacturer,Supplier and Exporter
Product Code : SEL-M-10896
Quick Answer: Two people can look at the same slide at once through the dual view head of this cordless LED microscope, which carries 4X, 10X and 40X glass achromatic objectives and runs on included NiMH batteries or a power adapter.
Last updated: October 2026
Key Features
- Dual view head, 45° inclined and 360° rotatable
- Two locked-on 10X wide-field eyepieces, one with pointer
- Reverse three-position nosepiece with positive stop clicks
- 4X, 10X and 40X glass achromatic objectives, parfocal, parcentred and colour-coded
- 3.5 inch round movable stage and six-hole rotating disc diaphragm
- Cordless LED lighting; NiMH batteries and power adapter both included
Technical Specifications
| Specification | Value |
|---|---|
| Head | Dual view, 45° inclined, 360° rotatable |
| Eyepieces | Two 10X wide-field, locked-on (one with pointer) |
| Nosepiece | Reverse, three positions, positive stop clicks |
| Objectives | 4X, 10X, 40X glass achromatic |
| Stage | 3.5 inch round, movable, spring-loaded clips |
| Diaphragm | Six-hole rotating disc |
| Focusing | Coarse knob with built-in slip clutch |
| Illumination | Cordless LED with on/off switch |
| Power | NiMH batteries or power adapter (both included) |
| Construction | All-metal frame, 12 inches high |
About This Product
Sharing a view speeds up teaching: a teacher can set the pointer on a feature while a student watches through the second eyepiece, instead of taking turns. The rotating disc diaphragm offers six apertures for adjusting light to the specimen, and the slip clutch protects the focus mechanism. With the batteries charged, the microscope can be used away from the socket, then run from the adapter at the bench.
Frequently Asked Questions
Can two students use the LED Cordless Dual View Microscope at once?
Yes. Its dual view head has two locked-on 10X wide-field eyepieces, so two people see the same specimen; one eyepiece has a pointer.
How is it powered?
By NiMH batteries or a power adapter, both included, feeding a cordless LED light with an on/off switch.
Related: Microscopes, Digital Camera Microscope with Dual View, LED Cordless Beginner Monocular Microscope, Two-Way Microscope.
For a quotation on the LED Cordless Dual View Microscope, contact School Educational Instrument.
