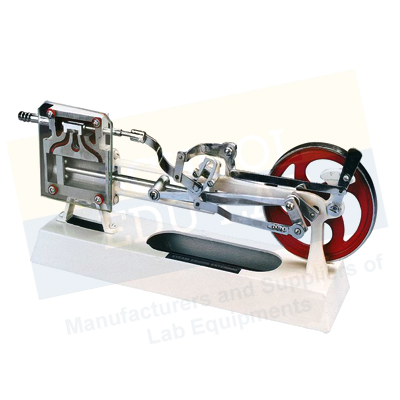

Sectional Model Of Steam Engine For Physics Lab Manufacturer,Supplier and Exporter
Product Code : SEL-PLE-10236
Quick Answer: Cut away to reveal its cylinder under a clear plate, this sectional steam engine model shows the piston, slide valve, link motion and reversing method at work, and its wheel turns easily enough to be driven by blowing.
Last updated: October 2026
Key Features
Cross-sectioned metal cylinder covered by a clear plate
Piston and slide valve both move
Link motion and reversing method can be observed
Wheel moves lightly enough to turn by blowing air
Model on base measures 14 x 7 x 4 inches
Technical Specifications
Specification
Value
Cylinder
Metal, cross-section cut, clear cover plate
Moving parts
Piston, slide valve, link motion, reversing method
Demonstration drive
Light enough to turn by blowing
Size on base
14 x 7 x 4 inches
About This Product
Steam engines are a standard example when teaching heat engines and the conversion of thermal energy into mechanical work. In this model the metal cylinder is cross-section cut and covered with a clear plate, so the movement of the piston inside can be seen, while the slide valve, link motion and reversing method can be observed as the wheel turns. The wheel moves lightly enough to be demonstrated even by blowing air from the mouth.
Frequently Asked Questions
How is the wheel turned for a demonstration?
The movement of the wheel is light enough to demonstrate even by blowing air from the mouth; the piston and slide valve both move, and the link motion and reversing method can be observed.
