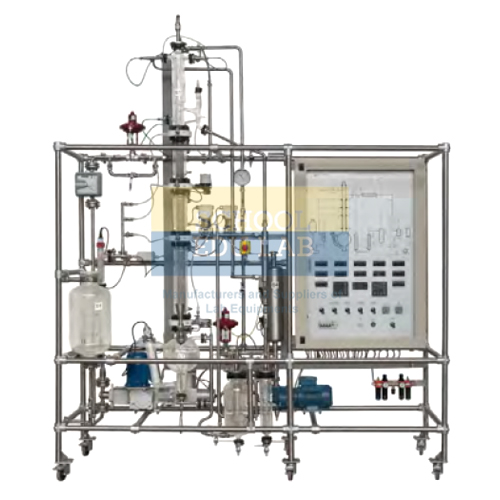

Automated Continuous Distillation Pilot Plant Manufacturer,Supplier and Exporter
Product Code : SEL-CELE-10972
Quick Answer: A microprocessor digital PID controller with serial card, pneumatic valves and pressure instrumentation are built into this automated continuous distillation pilot plant, which has a 600 mm column with 7 bubble cap trays and metering pump feed.
Last updated: October 2026
Key Features
- Distillation column 600 mm high with 7 bubble cap trays; condenser with reflux head
- Reboiler 3 litres with 1600 W electric heater and thyristor power control
- 5 litre feeding tank, metering pump 0 to 8.5 litres/hour; 1 litre distillate and 2 litre bottoms tanks
- Microprocessor digital PID controller with serial card
- Pneumatic valves (Cv = 0.32) for condenser cooling water flow rate and for residual pressure
- Oil vacuum pump, 4 m3/h, with vacuum circuit and trap
Technical Specifications
| Specification | Value |
|---|---|
| Column | 600 mm height, 7 bubble cap trays |
| Reboiler | 3 litres, 1600 W electric heater, thyristor power control |
| Feed | 5 litre feeding tank; metering pump 0 to 8.5 litres/hour |
| Product tanks | Distillate 1 litre; bottoms product 2 litres |
| Heat exchangers | Three tube-in-tube |
| Temperature | 6 digital thermometers with stainless steel shield sleeves; 6 electronic indicators |
| Reflux ratio control | 2 programmable timers |
| Controller | Microprocessor digital PID controller with serial card |
| Flow meter | Variable area, 20 to 250 l/h, 4-20 mA output |
| Pressure | Residual pressure transmitter 0 to 1000 mbar, 4-20 mA; 2 electro-pneumatic converters 4 to 20 mA / 0.2 to 1 bar |
| Control valves | Pneumatic, Cv = 0.32, for cooling water flow and residual pressure |
| Vacuum | Oil vacuum pump 4 m3/h; vacuum circuit with trap |
| Pipework and safety | Stainless steel pipework; emergency stop button |
About This Product
This plant combines a continuous-feed bubble cap column with process control hardware: a microprocessor digital PID controller with serial card, a residual pressure transmitter (0 to 1000 mbar, 4-20 mA), two electro-pneumatic converters and pneumatic valves on the condenser cooling water flow and the residual pressure. An oil vacuum pump and vacuum circuit with trap complete the system, putting separation and control equipment on one pilot rig for chemical engineering students. The Automated Continuous Distillation Pilot Plant can be exported to Haiti, Albania, Oman, Saint Vincent and the Grenadines, Kazakhstan and Panama.
Frequently Asked Questions
Which variables have pneumatic control valves?
The flow rate of the condenser cooling water and the residual pressure, each with a pneumatic valve of Cv = 0.32.
How is the plant fed?
From a 5 litre feeding tank by a metering pump with a flow rate of 0 to 8.5 litres/hour.
Related: Chemical Engineering Lab Equipment, Continuous Distillation Pilot Plant, Automated Batch Distillation Pilot Plant, Manual Batch Distillation Pilot Plant.
For a quotation on the Automated Continuous Distillation Pilot Plant, contact School Educational Instrument.
