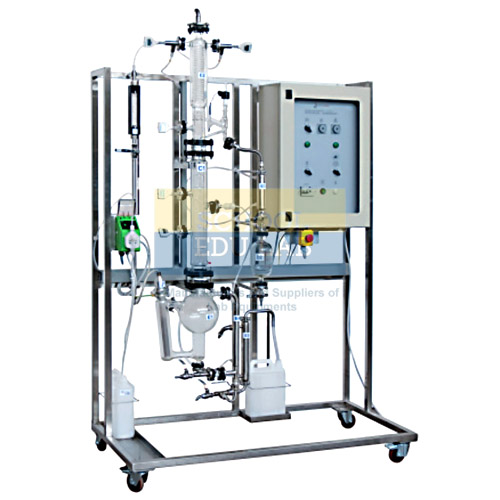

Continuous Distillation Pilot Plant Manufacturer,Supplier and Exporter
Product Code : SEL-CELE-10971
Quick Answer: Fed from a 5 litre tank by a metering pump (0 to 8.5 litres/hour), this continuous distillation pilot plant uses a 600 mm column with 7 sieve trays and collects distillate and bottoms product in separate tanks.
Last updated: October 2026
Key Features
- 5 litre feeding tank and metering pump, 0 to 8.5 litres/hour
- Distillation column 600 mm high with 7 sieve trays
- Reboiler 3 litres with 1600 W electric heater and thyristor power control
- Condenser with reflux head; 2 programmable timers for reflux ratio
- 1 litre distillate tank and 5 litre bottoms product tank
- 6 digital thermometers with pt100 probes in stainless steel shield sleeves
Technical Specifications
| Specification | Value |
|---|---|
| Column | 600 mm height, 7 sieve trays |
| Reboiler | 3 litres, 1600 W electric heater |
| Heater power control | Thyristor unit |
| Feed | 5 litre feeding tank; metering pump 0 to 8.5 litres/hour |
| Product tanks | Distillate 1 litre; bottoms product 5 litres |
| Condenser | With reflux head |
| Reflux ratio control | 2 programmable timers |
| Heat exchangers | 3 tube-in-tube |
| Temperature measurement | 6 digital thermometers, pt100 probes with stainless steel shield sleeves |
| Flow meter | Variable area, 20 to 200 litres per hour |
| Pipework | Stainless steel |
| Control | Electrical control panel in main cabinet; emergency stop button |
About This Product
Continuous distillation keeps feed entering the column while the top and bottom products are drawn off, and this plant supplies the feed tank, metering pump and separate product tanks needed to run the process that way at pilot scale. Sieve trays in the 600 mm column, pt100 temperature probes and timer-based reflux control give a chemical engineering lab a pilot-scale rig for continuous separation work. Schools and distributors in Armenia, the Democratic Republic of the Congo, Estonia, Togo, Chad and Mauritius can order the Continuous Distillation Pilot Plant from School Educational Instrument.
Frequently Asked Questions
How is the column fed?
From a 5 litre feeding tank by a metering pump with a flow rate of 0 to 8.5 litres/hour.
What kind of trays does the column have?
The 600 mm distillation column has 7 sieve trays.
