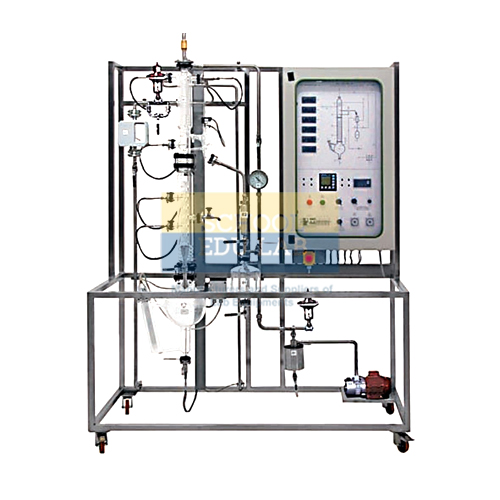

Manual Batch Distillation Pilot Plant Manufacturer,Supplier and Exporter
Product Code : SEL-CELE-10969
Quick Answer: A 4 litre reboiler with a 1600 W heater, a 600 mm column with 7 bubble cap trays and a condenser with reflux head form the core of this manual batch distillation pilot plant for chemical engineering labs.
Last updated: October 2026
Key Features
- Reboiler, 4 litres, with 1600 W electric heater controlled by a thyristor unit
- Distillation column 600 mm high with 7 bubble cap trays
- Condenser with reflux head; 2 programmable timers for reflux ratio control
- 1 litre distillate collection tank
- 6 thermocouples in stainless steel shield sleeves with 6 electronic temperature indicators
- PC interface in the control panel and data acquisition software for Windows
Technical Specifications
| Specification | Value |
|---|---|
| Reboiler | 4 litres, 1600 W electric heater |
| Heater power control | Thyristor unit |
| Column | 600 mm height, 7 bubble cap trays |
| Condenser | With reflux head |
| Reflux ratio control | 2 programmable timers |
| Distillate tank | 1 litre |
| Heat exchangers | Tube-in-tube, AISI 304 stainless steel |
| Temperature measurement | 6 thermocouples with stainless steel shield sleeves; 6 electronic indicators |
| Flow meter | Variable-area, stainless steel, 20 to 250 litres/hour, 4-20 mA output |
| Vacuum | Vacuum circuit with trap; gauge -1 to 0 bar |
| Pipe work and valves | Stainless steel |
| Control | Electrical control panel in main cabinet with PC interface; emergency stop button |
| Software | Data acquisition software for Windows |
About This Product
In batch distillation the reboiler is charged once and the mixture is separated over the course of the run. On this plant the reflux ratio is governed by two programmable timers, the reboiler heater by a thyristor unit, and six thermocouples with their own indicators give temperature readings throughout. The PC interface and data acquisition software let a chemical engineering class log its runs, while stainless steel pipe work and an emergency stop button complete the rig.
Frequently Asked Questions
How is the reflux ratio controlled?
Through 2 programmable timers working with the condenser's reflux head.
Can run data be sent to a PC?
Yes. The main electrical control panel contains a PC interface, and data acquisition software for Windows is included.
Related: Chemical Engineering Lab Equipment, Automated Batch Distillation Pilot Plant, Continuous Distillation Pilot Plant, Automated Continuous Distillation Pilot Plant.
For a quotation on the Manual Batch Distillation Pilot Plant, contact School Educational Instrument.
