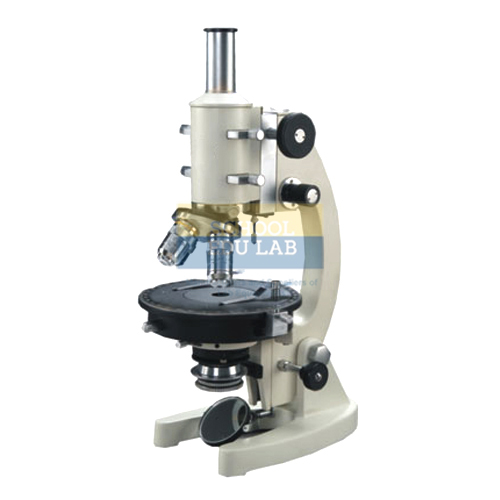

Laboratory Polarising Microscope Manufacturer,Supplier and Exporter
Product Code : SEL-M-10882
Quick Answer: A polarising microscope examines specimens in polarised light; this laboratory model has strain-free plan achromatic objectives for transmitted light, a 1.2X polarising intermediate with Bertrand lens and a sub-stage polariser on an N.A. 1.25 Abbe condenser.
Last updated: October 2026
Key Features
- Strain-free plan achromatic objectives for transmitted light observation
- Built-in halogen illumination and coated optics
- Polarising intermediate with 1.2X attachment magnification and built-in Bertrand lens on a rotating turret
- Swing-in/swing-out analyser
- DIN standard compensator slot for a 1st order red tint plate and a quarter-wave plate
- Quadruple ball-bearing nosepiece; coaxial coarse and fine motions on ball-bearing guides
Technical Specifications
| Specification | Value |
|---|---|
| Objectives | Strain-free plan achromatic, transmitted light |
| Illumination | Built-in halogen |
| Polarising intermediate | 1.2X, built-in Bertrand lens on rotating turret |
| Analyser | Swing-in / swing-out |
| Compensator slot | DIN standard: 1st order red tint plate, quarter-wave plate |
| Nosepiece | Quadruple, ball bearing |
| Focusing | Coaxial coarse and fine, ball-bearing guide |
| Condenser | Strain-free Abbe, N.A. 1.25, sub-stage polariser |
About This Product
A polarising microscope examines specimens in polarised transmitted light, between the sub-stage polariser and the swing-in/swing-out analyser. On this laboratory model the 1.2X polarising intermediate carries a built-in Bertrand lens on a rotating turret, and the DIN standard compensator slot takes a 1st order red tint plate and a quarter-wave plate. Strain-free plan achromatic objectives and a strain-free Abbe condenser keep the optics from adding colours of their own. Buyers in Zimbabwe, Kazakhstan, Antigua and Barbuda, Djibouti and Egypt can send an export enquiry for the Laboratory Polarising Microscope.
Frequently Asked Questions
What is the Bertrand lens for?
The built-in Bertrand lens on the rotating turret of the 1.2X polarising intermediate is used to view interference figures, alongside the swing-in/swing-out analyser.
Which compensator plates does it take?
Its DIN standard compensator slot accommodates a 1st order red sensitive tint plate and a quarter-wave plate.
Related: Microscopes, Advanced Research Polarizing Microscopes, Laboratory Ore Microscope, Inclined Ore Microscope.
For a quotation on the Laboratory Polarising Microscope, contact School Educational Instrument.
