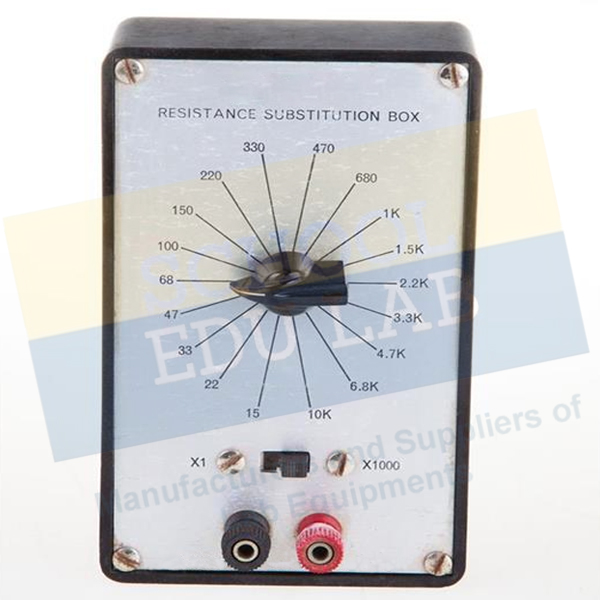

Resistance Substitution Box Manufacturer,Supplier and Exporter
Product Code : SEL-PLE-10170
Quick Answer: When a circuit under design or test needs a resistor value tried out quickly, this Resistance Substitution Box provides values from 10 Ω to 1,000 kΩ in 24 steps, using 5% tolerance, 1/2 watt resistors.
Last updated: October 2026
Key Features
Resistance values from 10 Ω to 1,000 kΩ
24 selectable steps
All resistors 5% tolerance, 1/2 watt
Values chosen from those most commonly used in solid-state circuits
Dimensions: 5.1 x 2.5 x 1.8 inches
Technical Specifications
Specification
Value
Range
10 Ω to 1,000 kΩ
Steps
24
Resistor tolerance
5%
Resistor rating
1/2 watt
Dimensions
5.1 x 2.5 x 1.8 inches
About This Product
Rather than soldering in one resistor after another, students select a new value on the box and see its effect on the circuit. That makes it a convenient instrument for finding the desired resistance value in circuits under design or test, during electronics practicals in school and college labs.
Frequently Asked Questions
What resistance range does the substitution box cover?
It covers 10 Ω to 1,000 kΩ in 24 steps, and all of its resistors are 5% tolerance, 1/2 watt.
